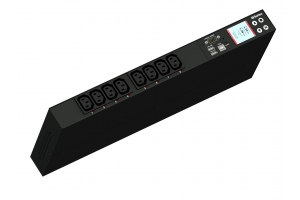

Raritan PX3-5190R energiedistributie 8 AC-uitgang(en) 1U Zwart

Raritan PX3-5190R. PDU types: Gemeten, Gecontroleerd, Geschakeld, Rackcapaciteit: 1U, Montage: Horizontaal. Aantal AC uitgangen: 8 AC-uitgang(en), Stopcontacttypes: C13 stekker, Stekker: IEC 60309. Snoerlengte: 3 m, Ondersteunde beveiligingsalgoritmen: HTTPS, SNMPv3, SSH. Nominale input voltage: 200-240 V, Stroom (max.): 16 A, AC-ingangsfrequentie: 50 - 60 Hz. Certificaten van naleving: RoHS, Certificering: CE, ICES-003, FCC

Tender Text/Bid Submittal Text

Monitored and switched rack power distribution unit (1U [horizontal], 3.7kVA, 8 outlets). INPUT: 230v, 16a - IEC 60309 2P+E 6h 16A plug (2P3W); OUTPUT: 8@ C13 outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per outlet; Remote Outlet Switching (Bi-State Latching Relays); Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation; 400MHz processor, 16MB NOR Flash, and 64MB SDRAM; (10/100) Ethernet portRemote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable of up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Tri-color status LED per receptacle. Max Dimensions 440mm x 183mm x 44mm (17.3in x 7.2in x 1.7in). Max Weight 1.25 kg. Maximum ambient temperature 60C at full load.
