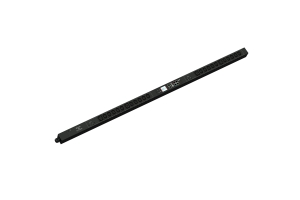

Raritan PX3-5493U energiedistributie 24 AC-uitgang(en) 0U Zwart

Raritan PX3-5493U. PDU types: Managed, Gemeten, Gecontroleerd, Geschakeld, Rackcapaciteit: 0U, Montage: Verticaal. Aantal AC uitgangen: 24 AC-uitgang(en), Stopcontacttypes: C13 stekker, C19 stekker, Stekker: IEC 60309. Snoerlengte: 3 m, Certificering: CE, Canada ICES-003, Part 15 Class A of the FCC rules. Monitoring: Vocht, Temperatuur, Beheerprotocollen: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC; Modbus over.... Nominale input voltage: 200-240 V, Stroom (max.): 32 A, AC-ingangsfrequentie: 50 - 60 Hz

Tender Text/Bid Submittal Text

Monitored and switched rack power distribution unit (0U [vertical], 7.4kVA, 24 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 20@ C13, 4@ C19 outlets; on 2@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 65mm x 1539mm (2.1in x 2.6in x 60.6in). Max Weight TBD. Maximum ambient temperature 60C at full load.
