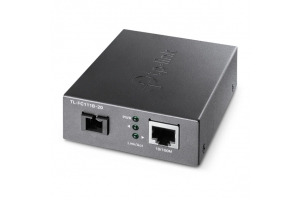

TP-Link TL-FC111B-20 netwerk media converter 100 Mbit/s Single-mode Zwart

TP-Link TL-FC111B-20. Maximale overdrachtssnelheid van gegevens: 100 Mbit/s, Netwerkstandaard: IEEE 802.3, IEEE 802.3i, IEEE 802.3x, Koperen ethernetbekabelingstechnologie: 10BASE-T, 100BASE-T. Maximaal bereik: 20000 m, Draad modus structuur: Single-mode, Vezelkabel diameters ondersteund: 9/125 µm. LED-indicatoren: Activiteit, Link, Stroom, Kleur van het product: Zwart. Vezel-optische connector: SC, Connectiviteitstechnologie: Bedraad. Spanning: 5 V, Output current: 0,6 A

What This Product Does
TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Garantie: 2 Years
